Öhlins NIX 30 Adventure Cartridge Kit for the Yamaha Tenere 700

The Yamaha Tenere 700 is an incredibly capable middleweight adventure bike, but aggressive riders quickly find the limits of the factory KYB front forks when pushing hard off-road. The Öhlins NIX 30 Adventure Cartridge Kit (FKA 114) completely transforms your T7's front end, replacing the under-sprung and under-damped OEM internals with world-class, race-proven suspension technology.

Based on Öhlins' legendary Road & Track development but re-engineered specifically for the rigors of backcountry adventure riding, this drop-in cartridge system utilizes their proven NIX damping technology. By separating compression damping into one fork leg and rebound damping into the other, it provides vastly improved stability, precise wheel control, and virtually eliminates harsh bottoming thanks to an integrated hydraulic stop. Whether you are navigating high-speed washboards, picking through technical rock gardens, or braking heavily into a paved corner with full luggage, this kit delivers the ultimate confidence and comfort.

Springs for this kit are sold separately:  CLICK HERE

Ohlins Installation Instructions for the
Yamaha Tenere 700 NIX 30 Cartridges

Features:

• NIX 30 Technology: Separates compression and rebound damping into individual fork legs, ensuring the hydraulic circuits do not interfere with each other for maximum precision and consistent damping under heavy loads.

• Fully Adjustable: All adjustments—compression, rebound, and spring preload—are conveniently located at the black top caps, allowing you to fine-tune your setup trailside without any special tools or removing the forks.

• Hydraulic Bottoming Stop: Features an integrated hydraulic stop within the cartridge to absorb massive impacts and prevent harsh metal-on-metal bottoming during heavy G-outs or jumps.

• Drop-In Installation: Designed to fit seamlessly inside the factory 43mm upside-down Kayaba (KYB) outer fork tubes, retaining your OEM chassis geometry and wheel mounting hardware.

• Adventure Durability: Built to withstand thousands of miles of heavy off-road abuse while maintaining extended service intervals compared to traditional racing cartridges.

Fitment:

• 2019–2026 – Yamaha Tenere 700

What's in the Box:

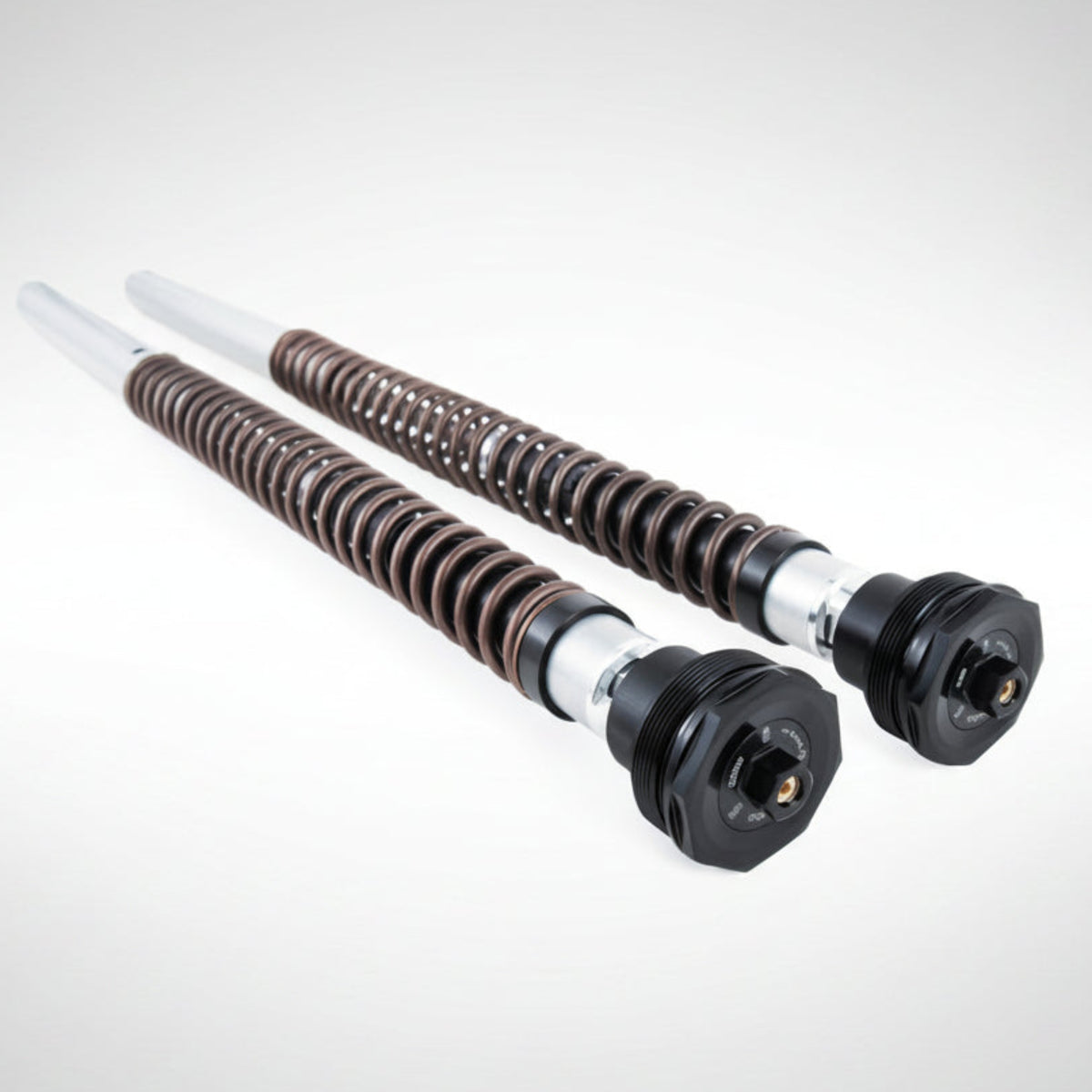

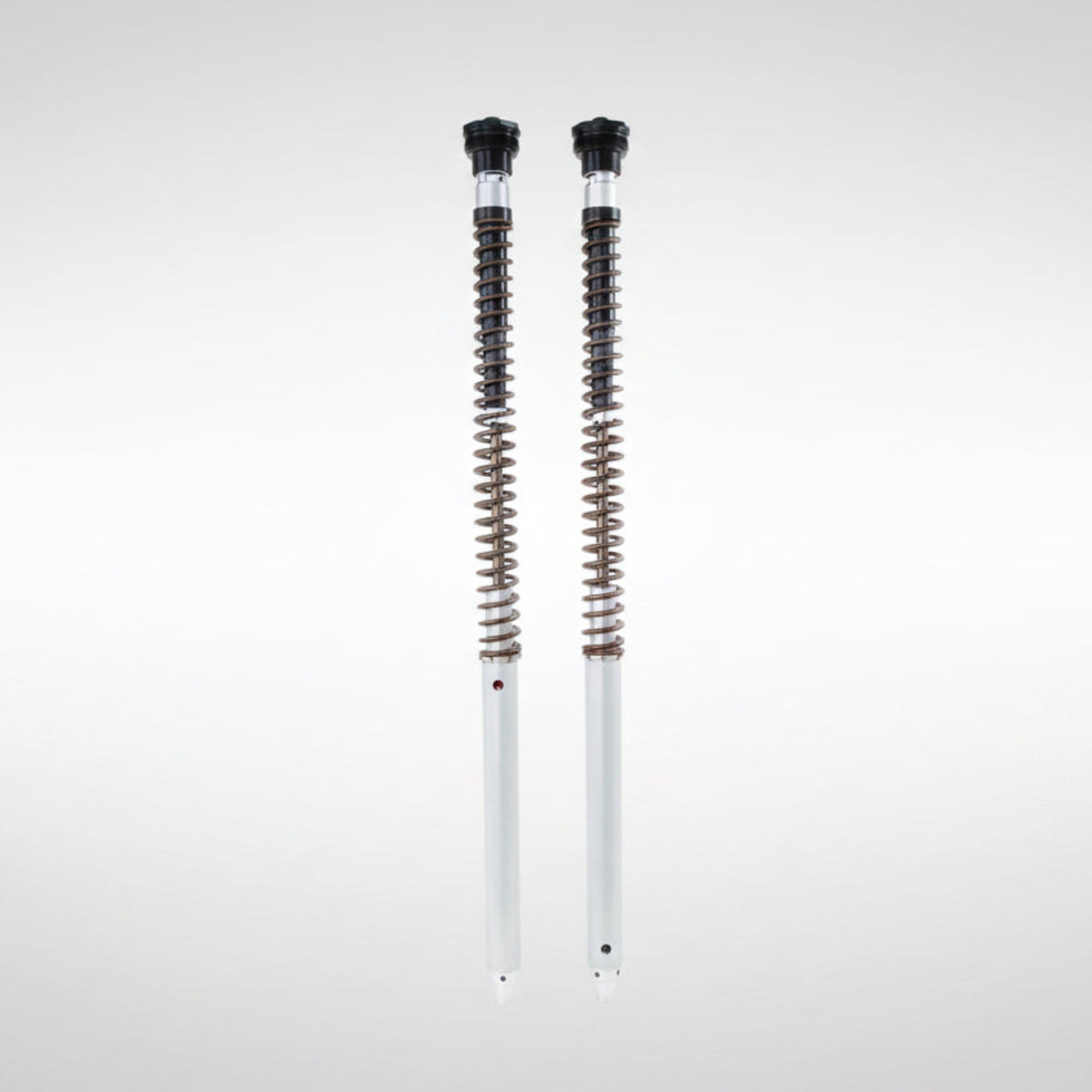

• 2x Öhlins NIX 30 Adventure Cartridges (Left & Right)

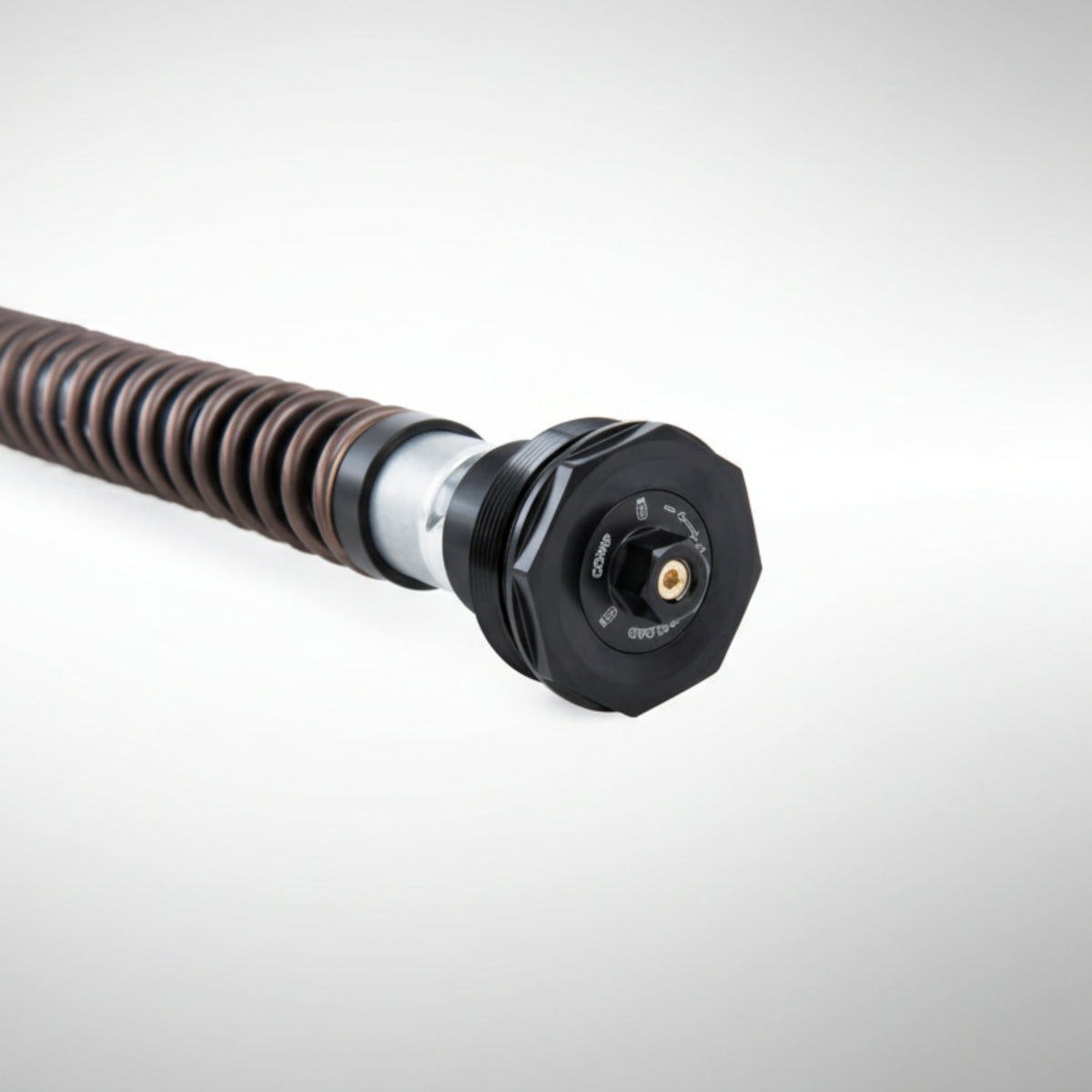

• 2x Öhlins Adjustable Top Caps

• (Note: Front fork springs and suspension fluid are NOT included and must be purchased separately based on rider weight).

Fitment Notes:

• Platform: Fits 2019–2026+ Yamaha Tenere 700 and Tenere 700 Rally Edition models utilizing the factory Kayaba (KYB) forks.

• Required Components: You must purchase Öhlins 08438-series fork springs specifically matched to your rider/luggage weight, along with Öhlins suspension fluid (01309-01) to complete the installation.

• Installation Tools: Professional installation is highly recommended. Specific Öhlins specialty tools (top-out spring puller and cylinder tube cap tool) are required to properly remove the factory internals and install this cartridge system.

Part Number: FKA 114
