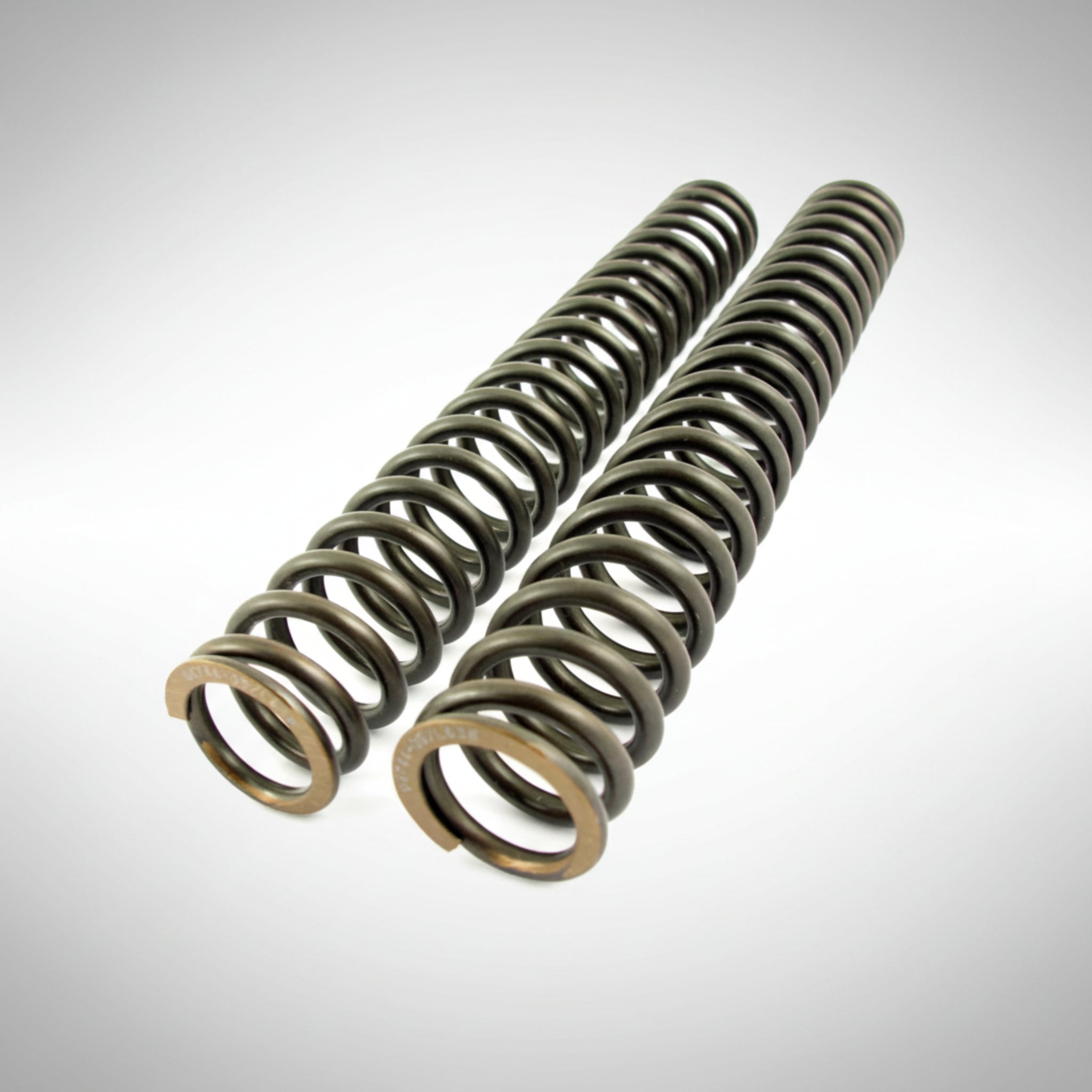

Öhlins 08424-Series Fork Springs (6.0 N/mm)

When you upgrade your Yamaha Tenere 700 to the Öhlins NIX 30 Adventure Cartridge Kit (FKA 114), the cartridges themselves arrive without springs. This is by design, allowing you to perfectly tune the front suspension to your specific riding weight and luggage load. The Öhlins 08424-60 Fork Springs are the crucial final component needed to complete your front-end transformation, delivering a precise 6.0 N/mm linear spring rate.

Unlike factory progressive springs that can feel vague and unpredictable through the middle of their travel, these Öhlins springs feature a strict linear rate. This provides consistent, predictable resistance from the top of the stroke all the way to bottom-out. Manufactured from the highest grade chrome-silicone wire, each spring is cold-coiled, heat-treated, and shot-peened to ensure it will not sag or lose its rate even after thousands of miles of heavy off-road abuse.

Ohlins Installation Instructions for the
Yamaha Tenere 700 NIX 30 Cartridges

Features:

• Linear Spring Rate: Delivers a consistent 6.0 N/mm of force throughout the entire suspension stroke, providing superior front-end feedback and eliminating unpredictable diving under hard braking.

• Chrome-Silicone Construction: Manufactured from premium high-stress wire that is cold-coiled and pre-set to prevent fatigue and performance degradation over time.

• Laser-Etched Identification: The 6.0 N/mm rate is laser-etched directly onto the end of the spring, removing any guesswork during future suspension servicing or valving adjustments.

• Polished Finish: Ground flat at the ends and polished to minimize internal friction against the cartridge tubes and spacers.

What's in the Box:

• 2x Öhlins 08424-60 Fork Springs (6.0 N/mm)

Fitment Notes:

• Cartridge Compatibility: These 420mm springs are engineered specifically to drop into Öhlins NIX / FKA Cartridge Kits (including the FKA 114 kit for the Yamaha Tenere 700).

• Required Fluid: Öhlins strictly recommends pairing these springs and the FKA cartridge with their proprietary 01309-01 Suspension Fluid for optimal hydraulic damping.

Part Number: 08424-60
