Trail Tech Vapor Digital Gauge Cluster for the Suzuki DR-Z400

The Trail Tech Vapor Digital Gauge Cluster (752-113) is a comprehensive motorcycle computer engineered to replace bulky factory instruments or add full instrumentation to off-road enduro models. The factory Suzuki DR-Z400S/SM instrument cluster lacks an engine tachometer, ambient/coolant temperature readouts, and programmable shift or temperature alerts, while the DR-Z400E model comes from the factory with no operational speedometer.

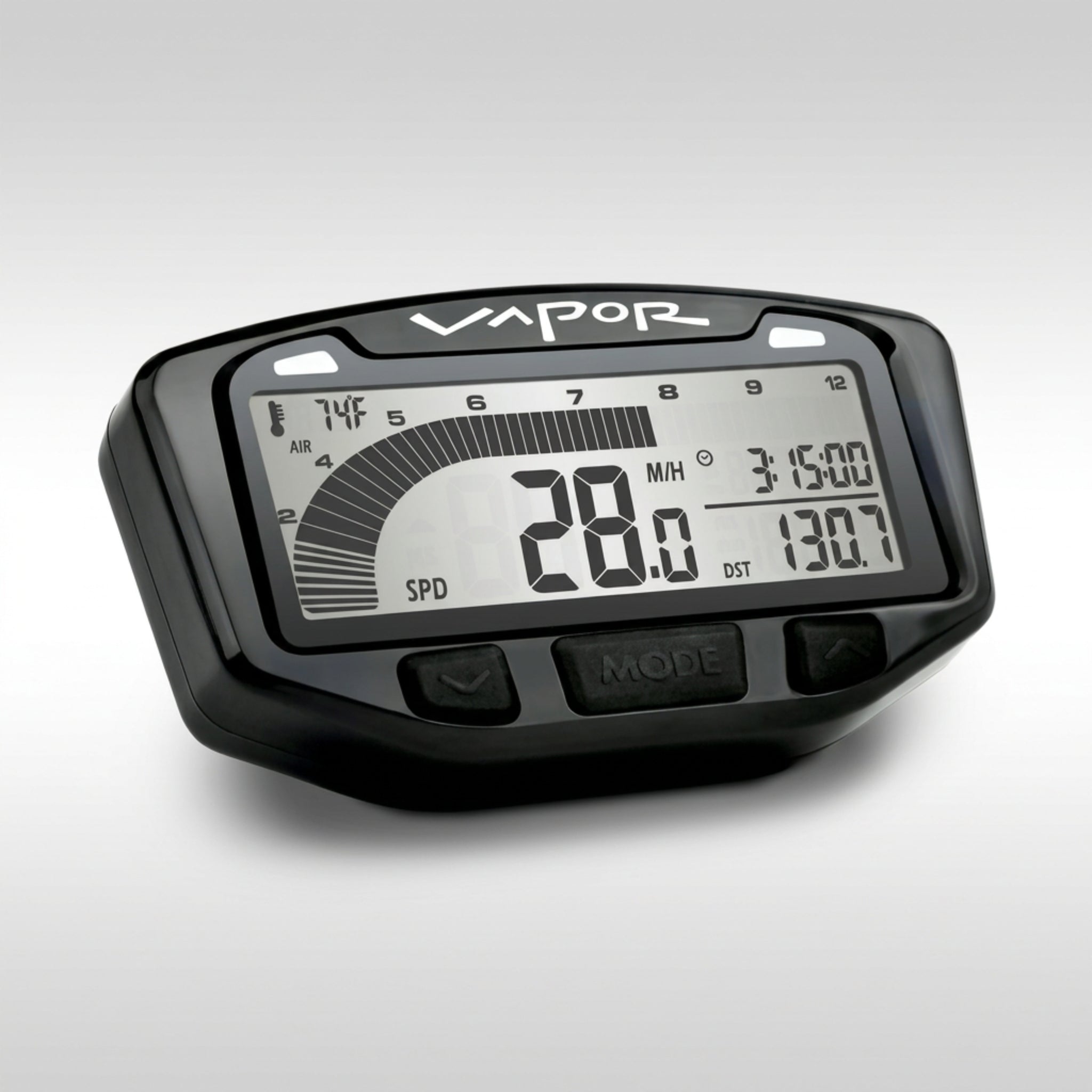

The Vapor unit combines a high-contrast digital speedometer, an active bar-graph tachometer, an engine coolant temperature monitor, and a dual-readout trip computer into a compact 4.2" x 2.3" weather-sealed chassis. Visual alerts include programmable yellow and red LED warning lights that trigger at custom-set RPM thresholds (shift indicators) and engine coolant temperatures to prevent overheating. The unit runs on the vehicle's 12V DC electrical system with automatic fallback to an internal CR2032 coin-cell battery, ensuring total hours, odometer values, and custom configurations are permanently retained in internal memory.

Features:

• Multi-Function Display: Displays current speed, real-time bar-graph and numerical RPM, engine coolant temperature, ambient temperature, trip distance, odometer, clock, and ride time.

• Programmable LED Alerts: Dual-stage visual LED indicators blink for customized shift points and cylinder head/coolant high-temperature warnings.

• Engine Hour Meter & Resettable Odometer: Tracks total accumulated engine hours and service intervals alongside an adjustable trip distance meter.

• Backlit LCD Screen: White-backlit digital screen ensures daytime visibility and high readability during low-light and nighttime riding.

• Flexible Power Input: Operates on standard 12V DC vehicle battery power or switches automatically to its internal CR2032 battery.

• Permanent Data Memory: Non-volatile internal memory preserves cumulative odometer readings and hour logs during vehicle battery disconnects.

What's in the Box:

• 1x Trail Tech Vapor Digital Computer Head Unit

• 1x Handlebar Mounting Bracket Kit (fits both 7/8" and 1-1/8" bars)

• 1x Wheel Speed Sensor & Rotor Magnet Mounting Kit

• 1x 25mm Inline Coolant Hose Temperature Sensor with Hose Clamps

• 1x M6x1 Cylinder Head Screw-In Temperature Sensor

• 1x Ignition RPM Sensor Wire

• 1x 12V DC Vehicle Power Lead

• Installation Hardware & Complete User Guide

Fitment:

• 2000–2024 – Suzuki DR-Z400

Fitment Notes:

• Optional Dash Surrounds: Compatible with the Trail Tech Indicator Dashboard (sold separately) to retain neutral, high-beam, oil pressure, and turn signal indicator lights.

• Wheel Circumference Calibration (PPU): For dead-accurate speedometer readings, do not use generic wheel diameter estimates. Measure your front tire rollout manually: place a piece of tape on the shop floor aligned with the valve stem, roll the bike forward in a straight line with the rider seated until the valve stem makes one full revolution, and mark the floor. Measure the distance between marks in millimeters (typically around 2110 mm for a 90/90-21 tire, or 1882 mm for a 120/70-17 supermoto front tire) and enter that exact number into the Vapor's setup menu.

• Tachometer Pickup Routing: To eliminate RPM jump or erratic bar-graph readings, wrap the tachometer sensor wire approximately 4 to 5 tight wraps around the high-tension spark plug lead roughly 1–2 inches back from the spark plug cap. Secure the wraps tightly with electrical tape or heat shrink. Avoid running the tachometer wire parallel to stator wiring or unshielded headlight wires to prevent electromagnetic interference (EMI) from skewing the signal.

• Inline Temperature Sensor Placement: When splicing the 25mm coolant temperature sensor into the DR-Z400 cooling system, install it in the upper radiator hose returning hot coolant from the cylinder head to the left-side radiator. This reads engine exit temperature directly, giving you real-time engine operating temperatures before the coolant passes through the radiator core.




Part Number: 752-113
