Tekton 3/8" Drive Folding Quick-Release Ratchet

The Tekton 3/8" Drive Folding Quick-Release Ratchet (SRH35104) is a highly versatile, compact hand tool engineered for work in extremely tight, awkward clearance zones. Combining a multi-position folding handle with a high-density 90-tooth gear, this ratchet provides maximum leverage and fine-arc control around crowded engine bays, exhaust headers, and frame rails where standard fixed-handle ratchets stall.

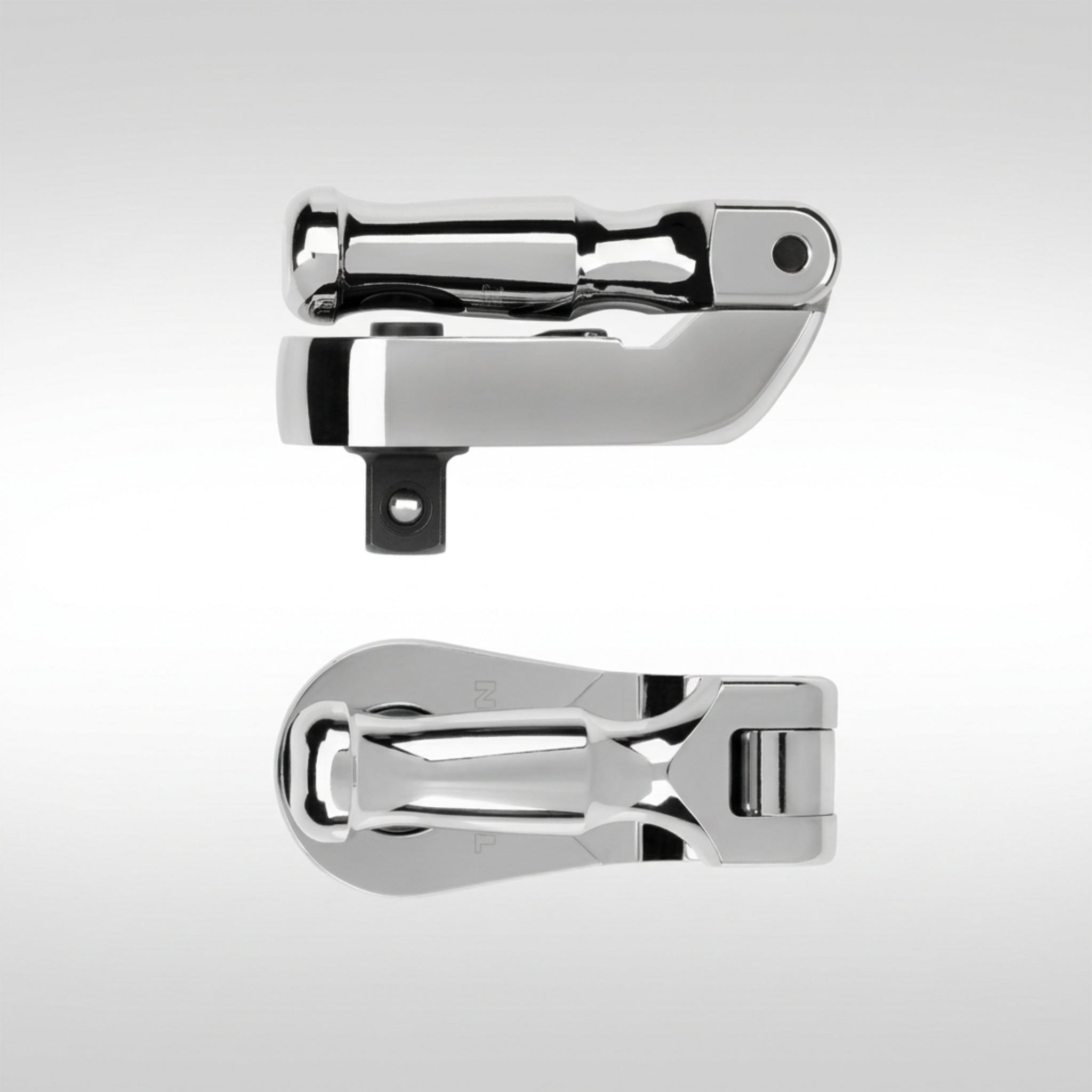

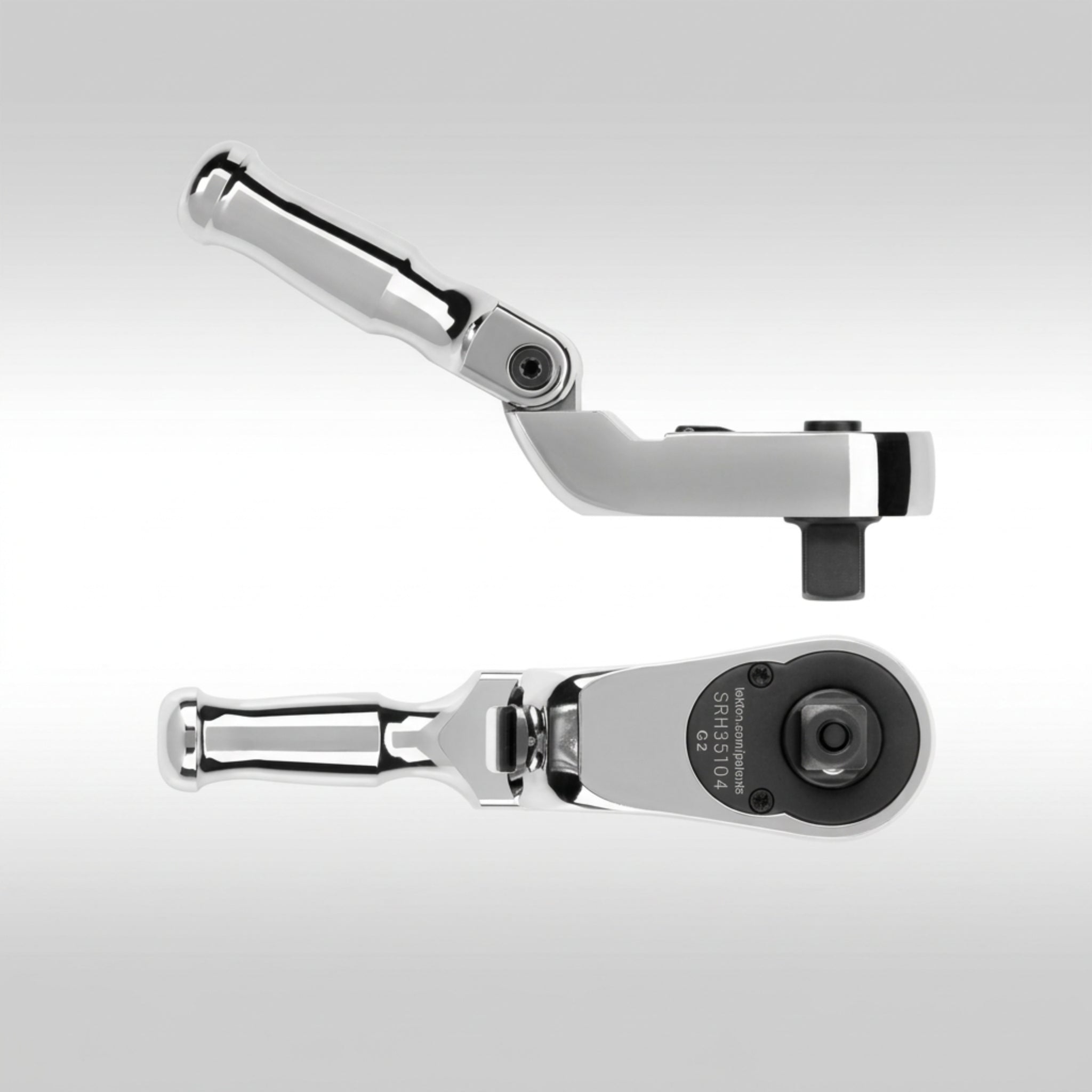

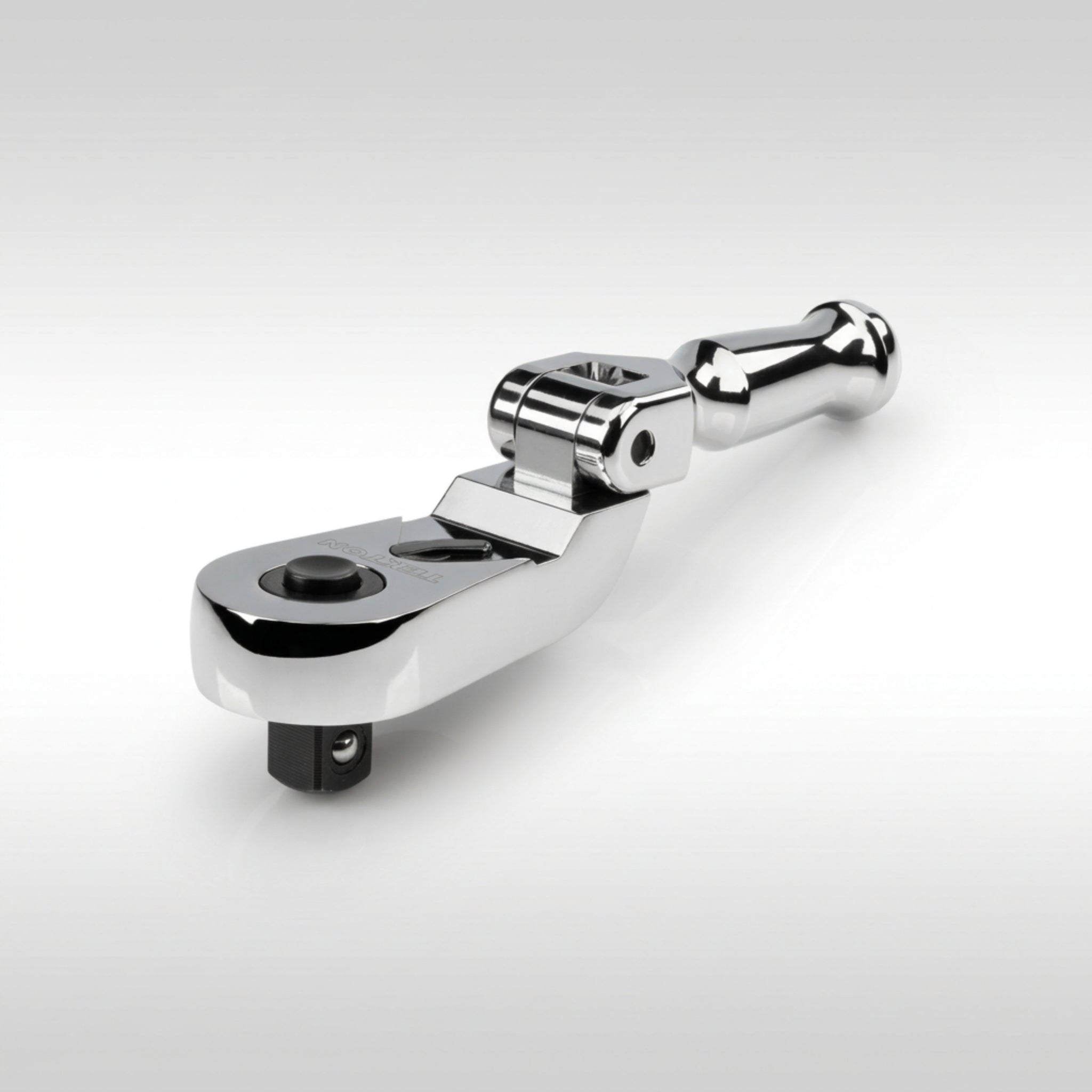

Constructed from premium chrome vanadium steel with a corrosion-resistant full-chrome finish, the ratchet handle folds 180 degrees across a continuous friction hinge, allowing it to function as a straight palm-style nut driver, an offset ratchet, or a high-torque L-handle. The 90-tooth head requires a tight 4-degree swing arc to engage the next tooth, making it indispensable for micro-adjustments in cramped quarters. A push-button quick-release mechanism firmly locks sockets onto the drive anvil until released, preventing sockets from dropping into skid plates or dark engine cavities.

Features:

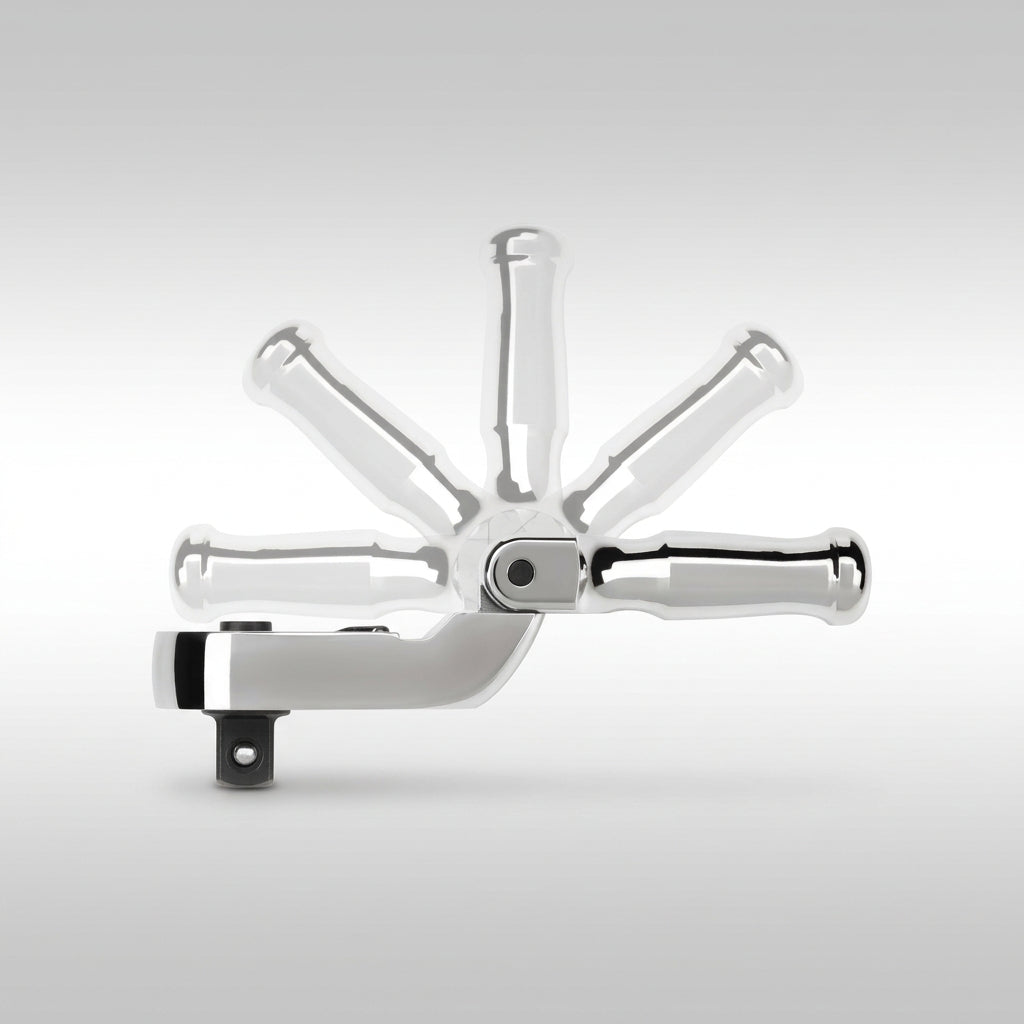

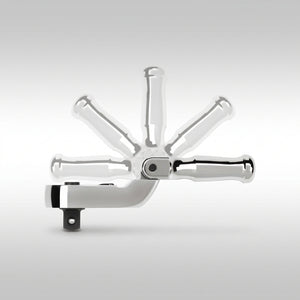

• 180° Folding Handle: Smooth friction-fit hinge allows the handle to pivot continuously through 180 degrees for straight inline driving, angled clearance, or maximum leverage positions.

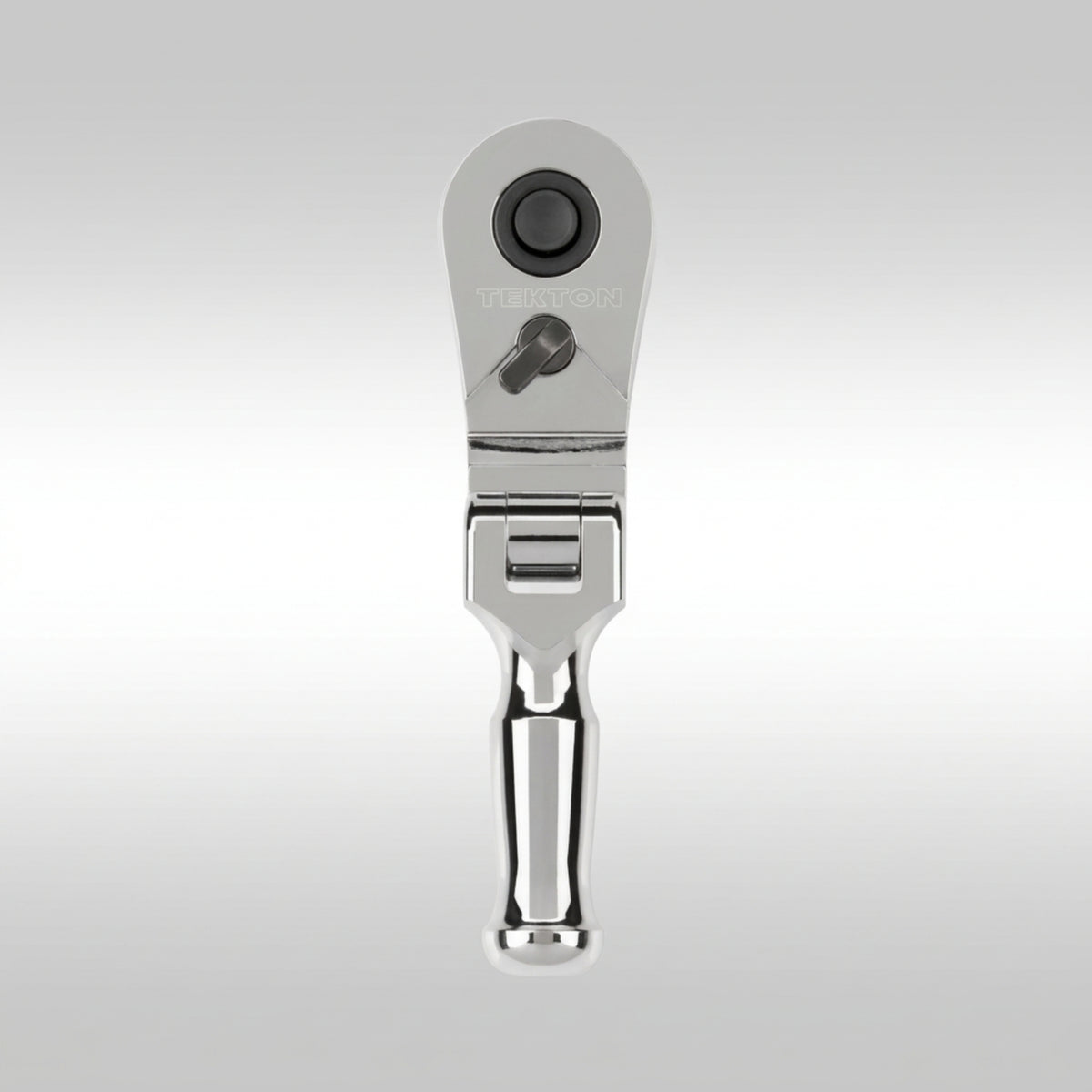

• Fine 90-Tooth Gear: High-density gear mechanism delivers a tight 4-degree swing arc, allowing fast fastener engagement in ultra-confined spaces.

• Push-Button Quick Release: Ball-detent lock keeps sockets securely attached to the anvil until the top release button is depressed.

• Reversible Drive: Flush-mounted thumb lever instantly changes drive direction without interfering with adjacent components.

• Chrome Vanadium Steel: Drop-forged steel construction with a fully polished chrome finish for strength, rust resistance, and easy cleanup.

What's in the Box:

• 1x Tekton 3/8" Drive Folding Quick-Release Ratchet (Part #SRH35104)

Use Notes:

• 3/8" Drive Standard: Compatible with all standard 3/8" drive metric and SAE sockets, extensions, and bit adapters.

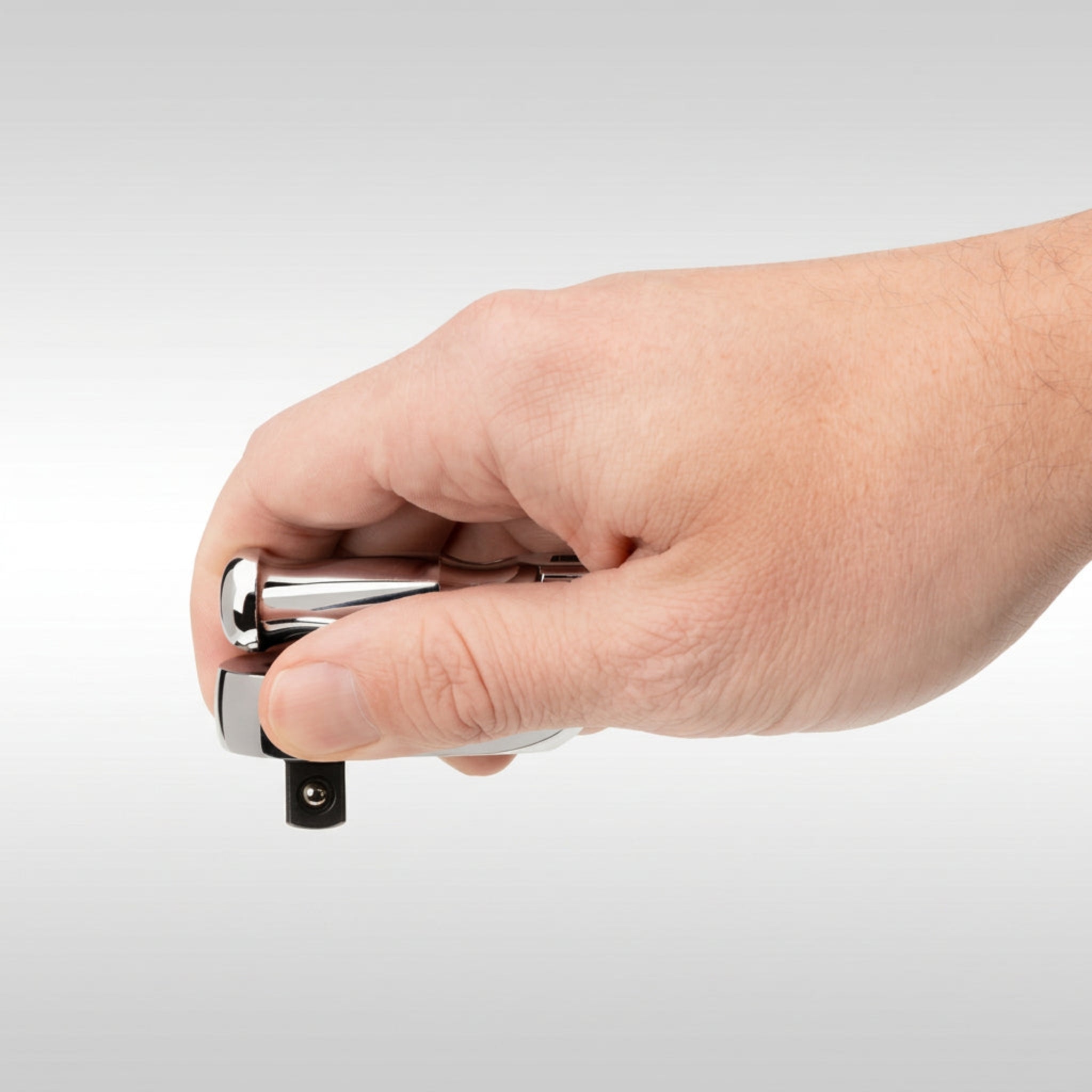

• Inline Driver Mode: Straightening the handle inline with the ratchet head allows you to rapidly spin loose fasteners like a speed handle or palm driver.

• 180° Angle Strategy: When breaking loose stubborn fasteners like chassis bolts or caliper mounts, keep the handle locked in a straight 90-degree position relative to the drive for maximum torque transmission. Once the fastener breaks free, swing the handle 180 degrees inline with the socket axis to transform the tool into a high-speed screwdriver/palm spinner to rapidly back the bolt out.

Part Number: SRH35104
