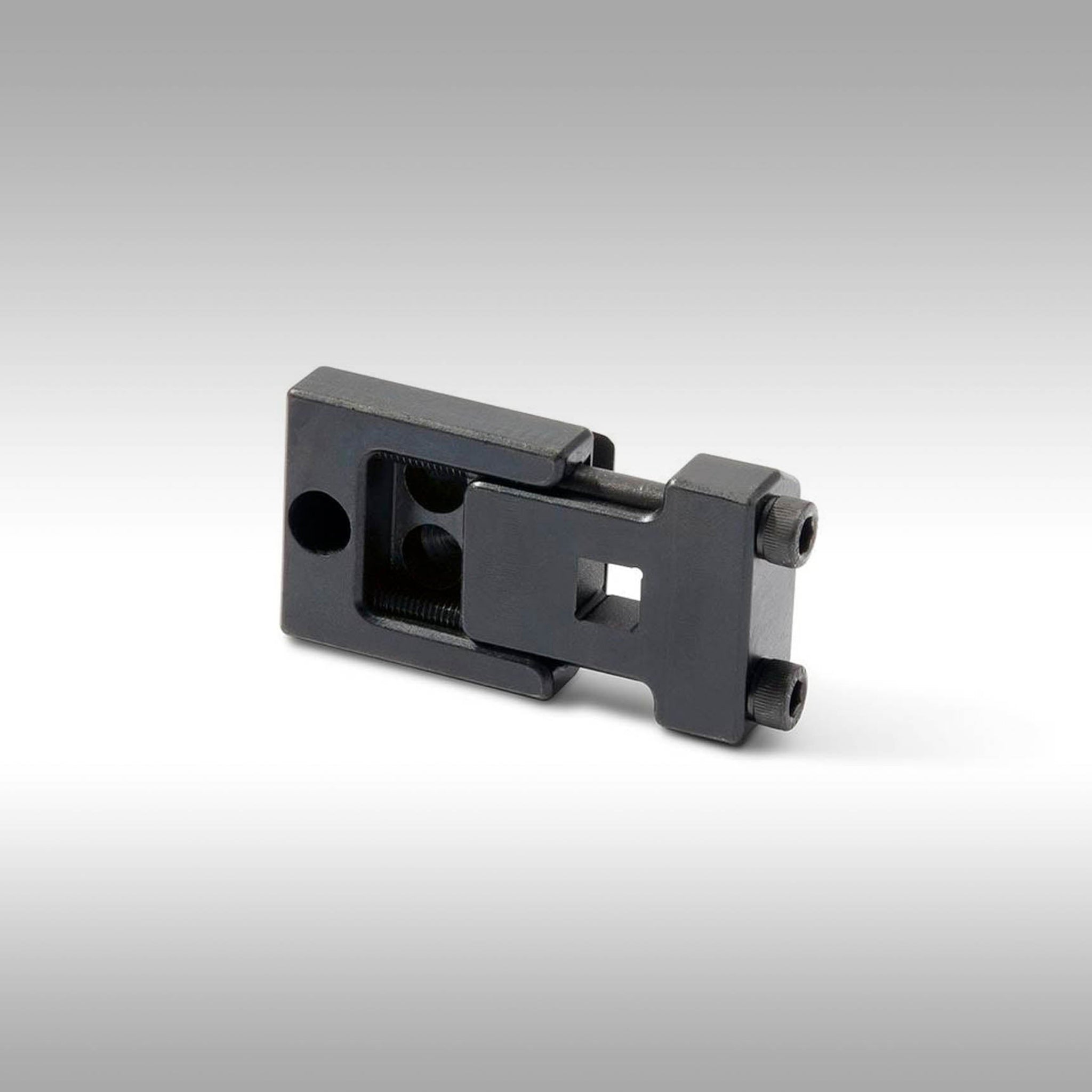

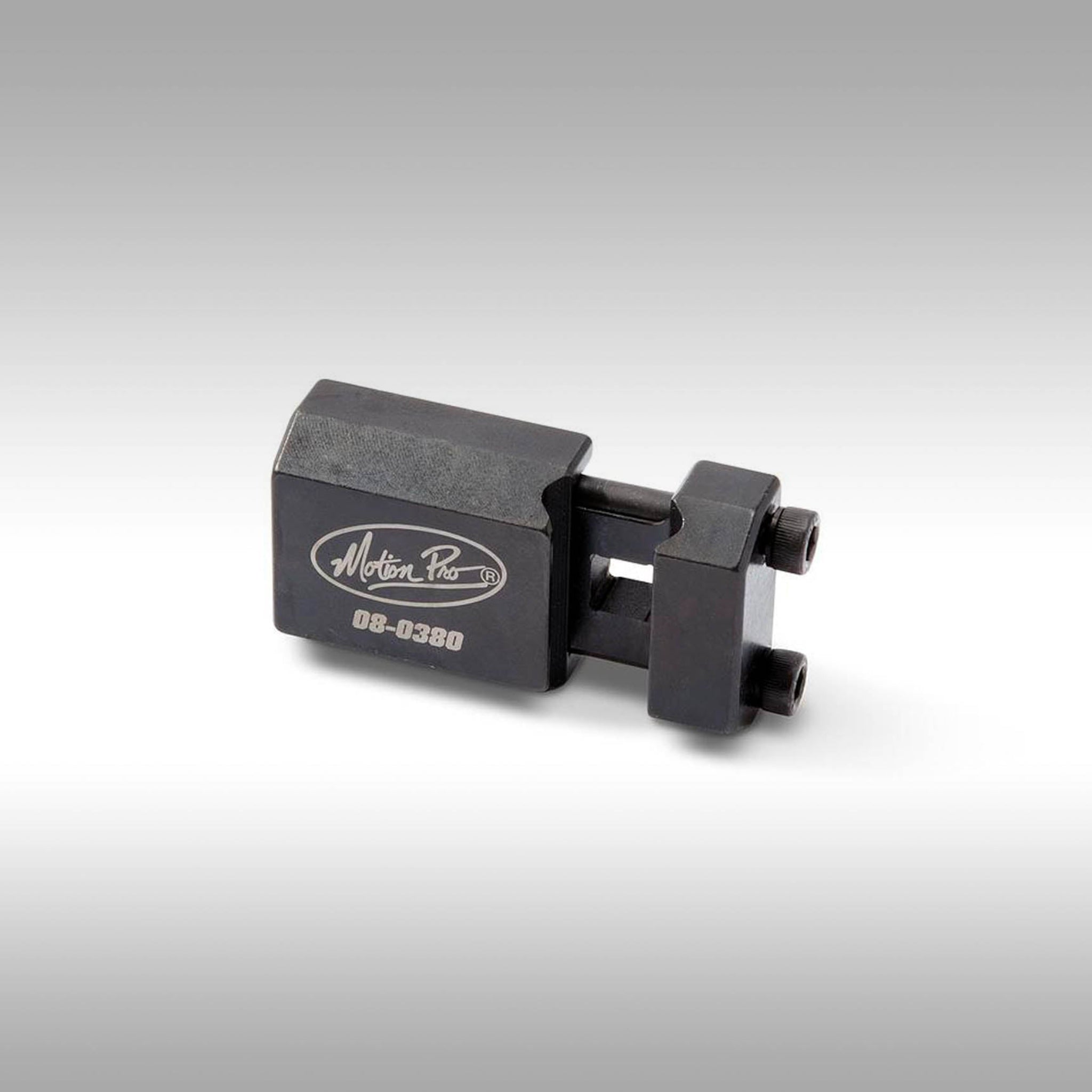

Every engine builder eventually hits the same frustrating roadblock: the service manual calls for a highly specific torque spec on a cylinder base nut, exhaust header bolt, or suspension linkage, but the physical clearance is so tight that a standard socket and torque wrench absolutely will not fit. The Motion Pro Adjustable Torque Wrench Adapter (08-0380) is the definitive solution to this problem.
Instead of guessing the torque by "feel" and risking a blown head gasket or a snapped stud, this ingenious tool allows you to convert any standard open-end or box-end wrench into a torque wrench extension. The heavy-duty jaws clamp securely onto the shaft of your existing wrench, while the 3/8-inch square drive accepts your torque wrench. This setup allows you to slide a slim box-end wrench into inaccessible crevices while keeping the bulky torque wrench head out in the open.
Universal Wrench Fitment: The adjustable clamping mechanism securely grips the handle of virtually any metric or standard combination wrench, flare-nut wrench, or specialty spanner in your toolbox.
Access the Inaccessible: Solves clearance issues on cylinder base nuts, exhaust manifolds, shock mounts, and deeply recessed engine case bolts where standard sockets are too tall.
3/8-Inch Square Drive: Plugs directly into standard 3/8" drive motorcycle torque wrenches.
Heavy-Duty Construction: Forged from heat-treated tool steel to ensure zero flex and 100% accurate torque transfer to the fastener.
Protects Engine Components: Eliminates the guesswork of hand-tightening critical engine components, preventing warped cylinders, crushed gaskets, and sheared bolts.
NOTE: When you use an adapter that extends straight out from the head of your torque wrench, you are physically lengthening the lever arm. This means if you set your wrench to 30 ft-lbs, the actual fastener will receive more than 30 ft-lbs. To prevent over-tightening, you must calculate the new setting for your torque wrench using the following formula:
TW = Torque setting required on the Wrench
TE = Target Torque required at the fastener (from your service manual)
L = Length of your torque wrench (measured from the center of the handle grip to the center of the 3/8" drive)
E = Length of the Extension (measured from the center of the 3/8" drive to the center of the fastener)
The 90-Degree Hack (No Math Required):
If you don't want to do the math, there is a brilliant mechanic's trick. Clamp your wrench into the Motion Pro adapter, but attach your torque wrench so it sits at exactly a 90-degree angle to the extension wrench (making an "L" shape). Because the extension is no longer adding length along the axis of leverage, the torque value does not multiply. You can set your torque wrench to the exact number in your manual and pull until it clicks.
Part Number: 08-0380
