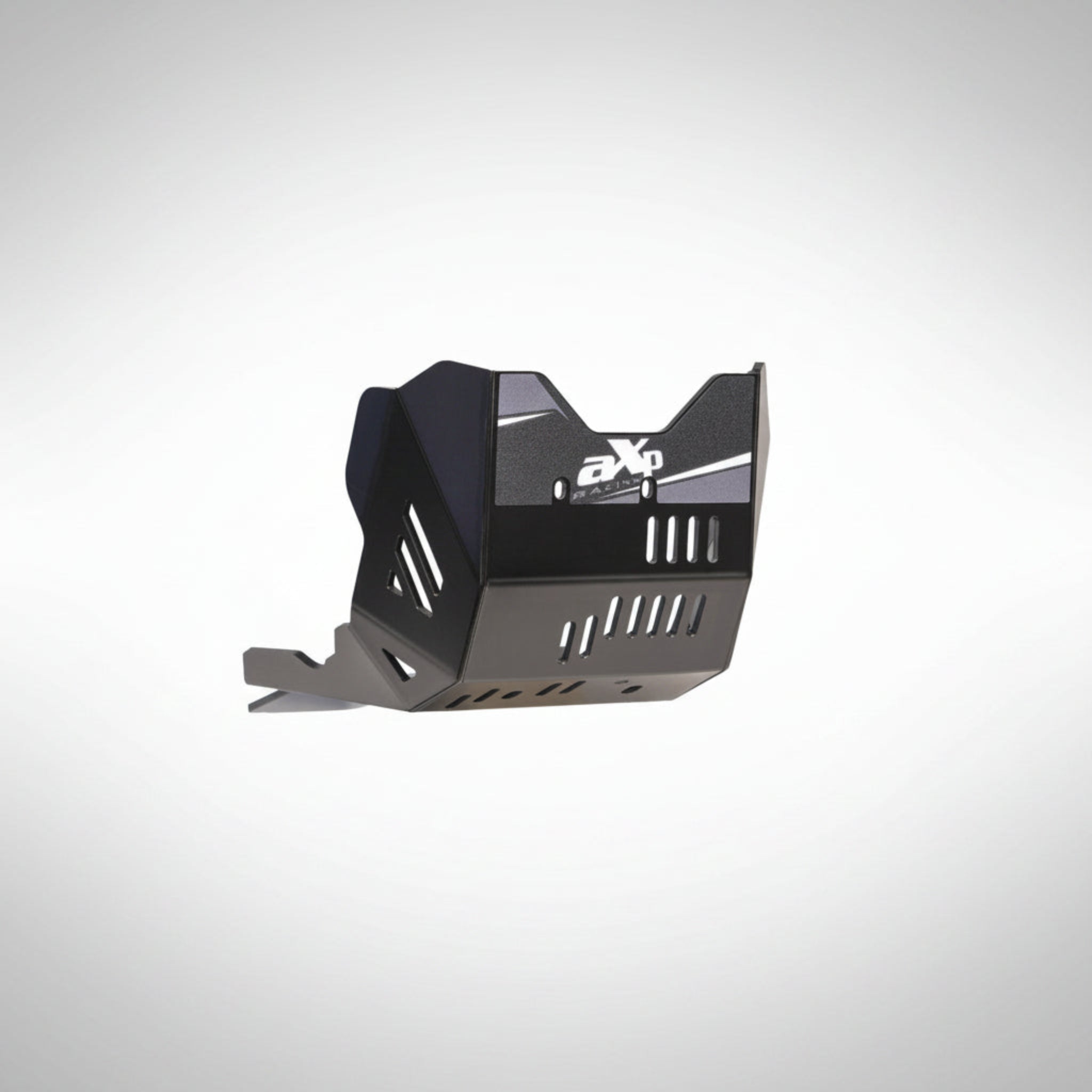

The AXP Racing Adventure Skid Plate provides comprehensive undercarriage protection for your Kove 800X Pro or Rally. Manufactured from a proprietary 8mm-thick High-Density Polyethylene (HDPE). This skid plate offers a significant functional advantage over traditional aluminum by absorbing heavy impacts and flexing back into its original shape without permanently denting. It is designed for maximum coverage, safely shielding the water pump, engine cases, exhaust header, and rear suspension linkage from trail damage.
In addition to its impact resistance, the HDPE construction inherently improves trail performance. The polymer completely eliminates the metallic resonance and vibration common with alloy plates, resulting in a noticeably quieter ride by dampening valve train noise. Furthermore, its naturally low coefficient of friction allows the motorcycle to glide effortlessly over jagged rocks and tall logs without grabbing or hanging up on obstacles.

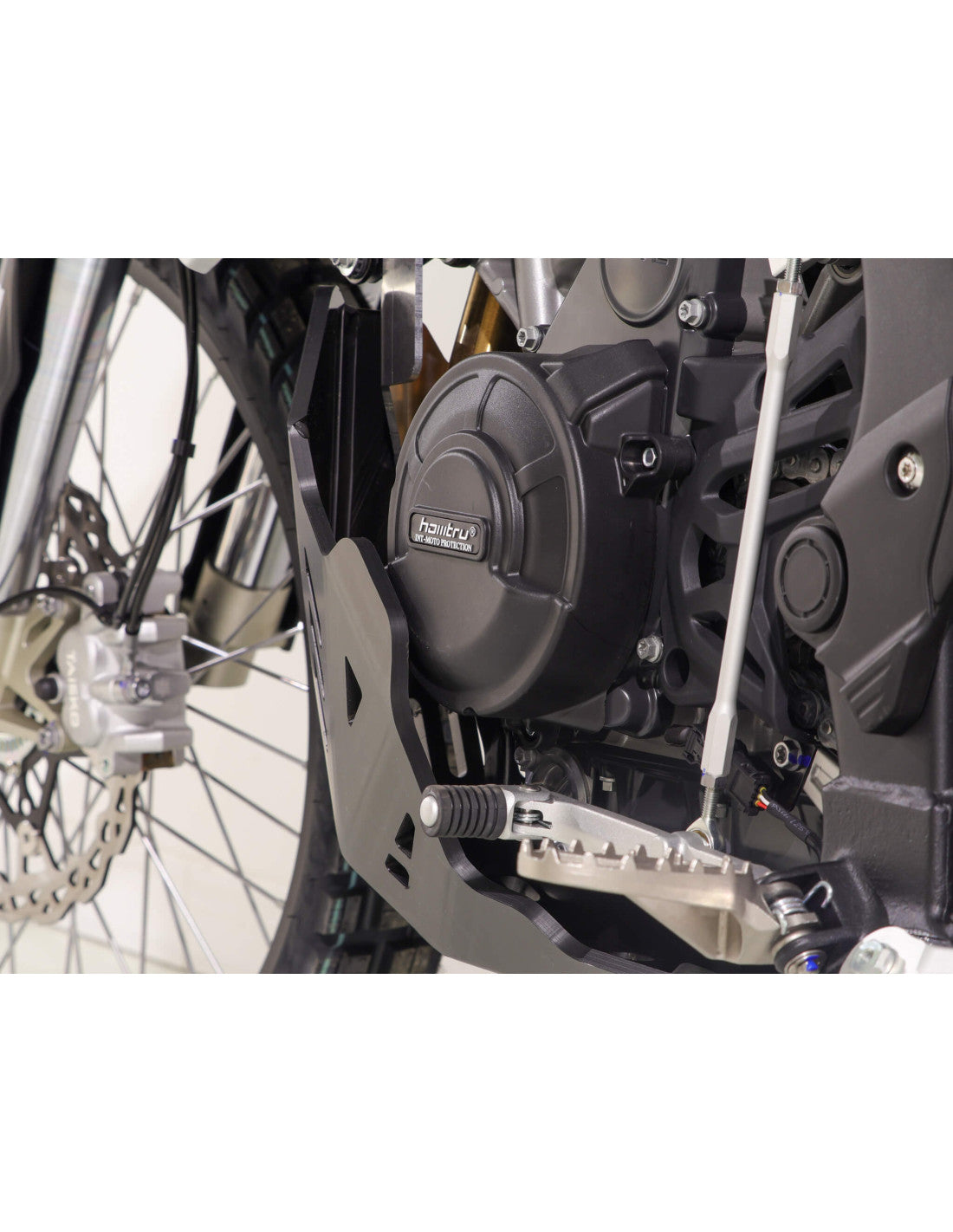

8mm HDPE Construction: Manufactured from 8mm thick High-Density Polyethylene plastic, offering superior impact absorption and shape retention compared to standard aluminum plates.
30-40% Lighter: Weighing in at just 2.9 kg (6.4 lbs), this plate provides bulletproof protection while dropping significant unsprung weight compared to heavy alloy alternatives.
Acoustic Damping: The HDPE material naturally absorbs sound and prevents the annoying engine echo and high-frequency vibrations caused by metal skid plates.

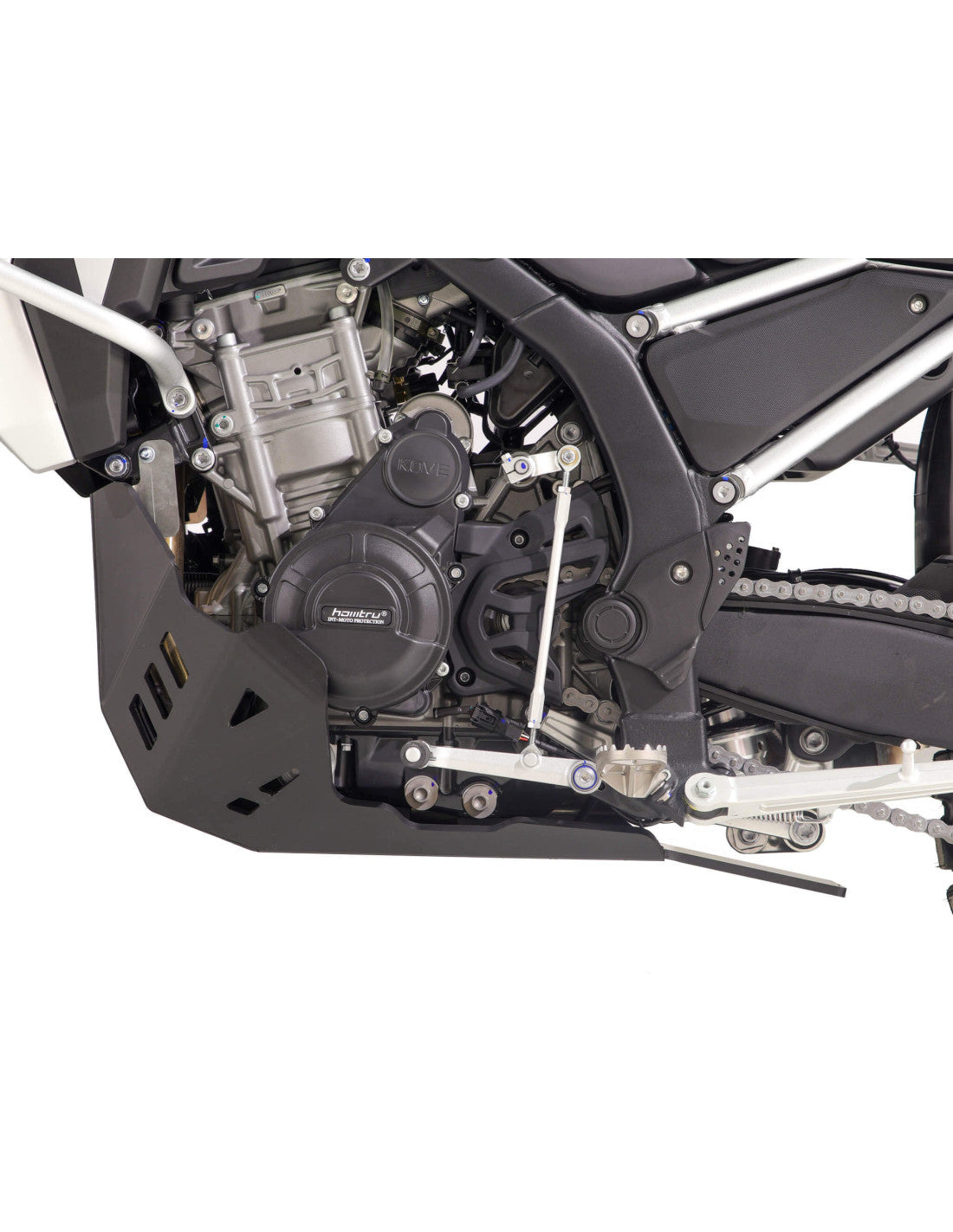

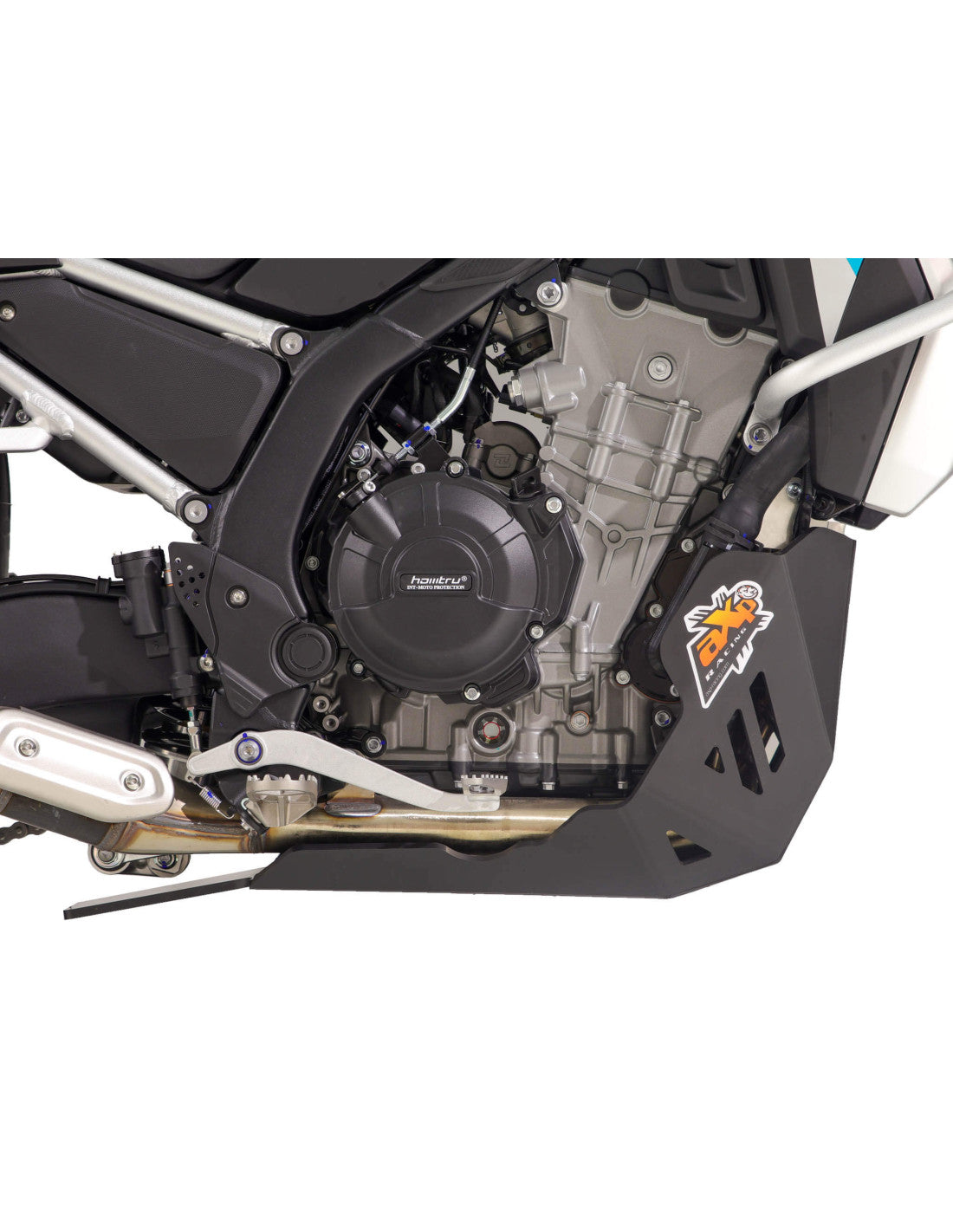

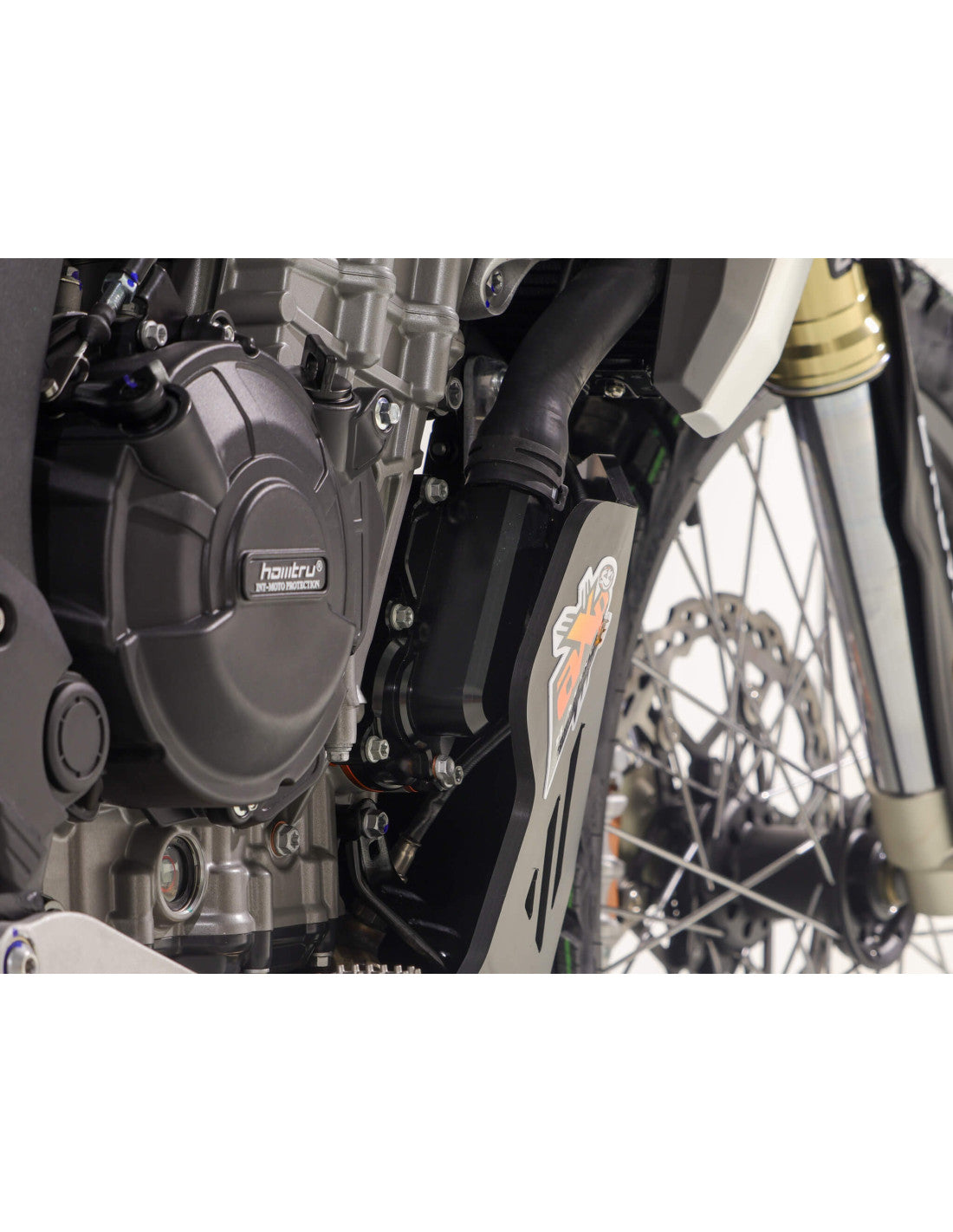

Full Coverage: Expertly molded to wrap around and protect the most vulnerable areas of the 800X, including the frame rails, water pump, engine block, exhaust system, and rear linkage.
Robust Mounting System: Anchors directly to the upper frame using a heavy-duty 4mm aluminum front bracket and two dedicated rear engine mounts. A central reinforcement wedge stiffens the entire assembly.
1x AXP Racing 8mm HDPE Skid Plate (Black)
1x 4mm Aluminum Front Mounting Bracket
Complete Mounting Hardware Kit
Crash Bar Compatibility: Please verify compatibility if you are running aftermarket lower engine crash bars, as bulky tubular steel bars may interfere with the wide upper wings of the AXP plate.
Part Number: AX1780
If you have any questions or need help finding what you need for your motorcycle or your next adventure please reach out:
EMAIL US AT tmbrmoto@tmbrmoto.com- OR CALL - 208-254-2044
