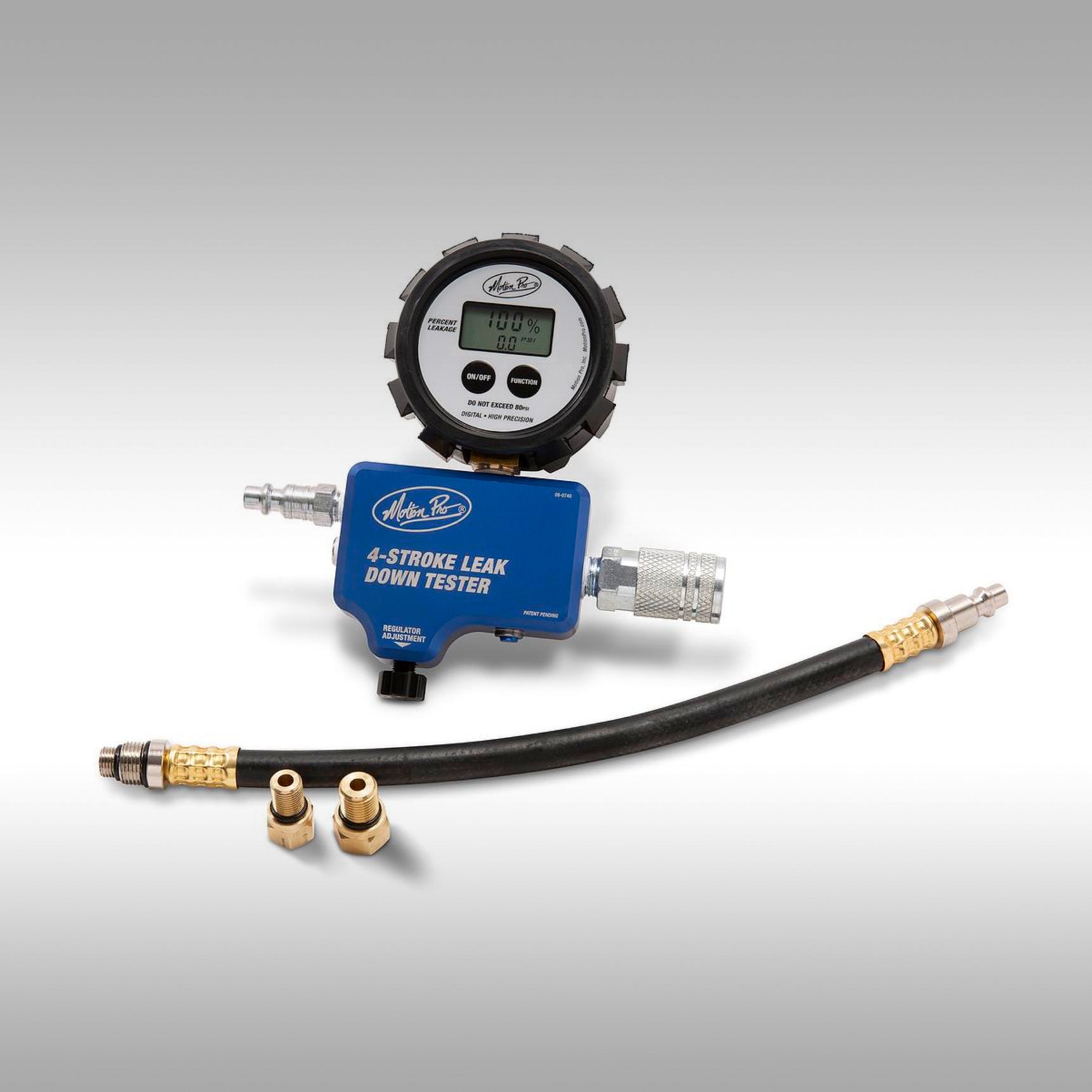

Motion Pro Digital 4-Stroke Leak Down Tester

The digital leak down tester for 4-stroke engines from Motion Pro is a diagnostic tool used to assess the internal condition of your four stroke engine. It works by introducing compressed air (from your compressor) into an engine cylinder (usually at top dead center with both valves closed) and then measuring how much of that air leaks out.

Unlike a compression test, which measures the pressure an engine can generate, a leak-down test measures how well the cylinder can hold pressure. By listening for where the escaping air is coming from (e.g., the exhaust, intake, or crankcase), a technician can narrow down the source of the leak.

Features:

• Accurately displays the total percentage of leakage past the rings, head gasket, intake and exhaust valves
• Speeds up troubleshooting and helps to isolate bad components

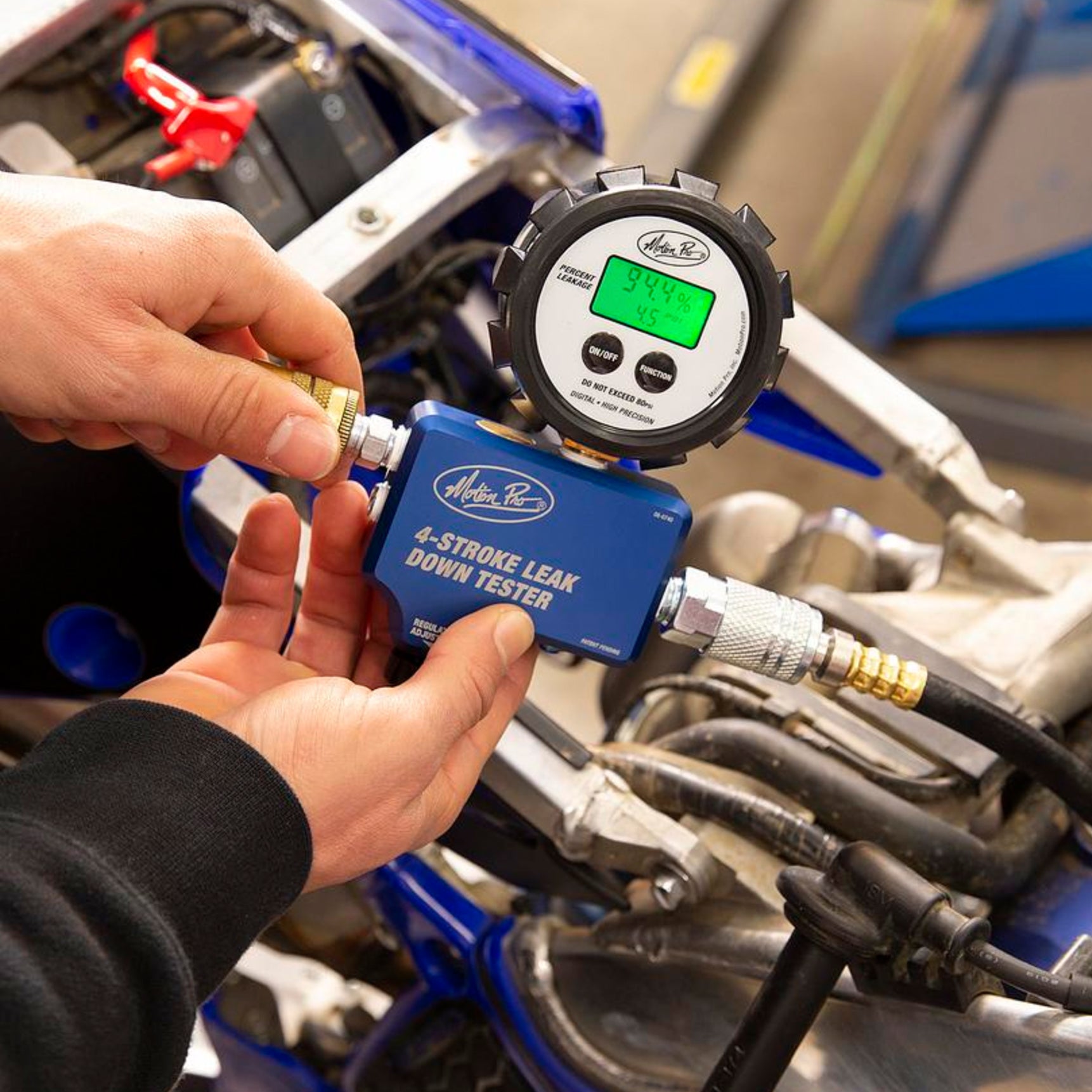

• Precision digital display provides accurate, easy to read results
• Easy to use precision pressure regulator built into body of tool
• Rugged rubber boot protects digital gauges
• Tests at 80, psi cylinder pressure. Requires 90 PSI air source.
• Includes 1/4" male industrial quick connector
• Meets FAA leak down test specifications for cylinders below 5.00" (127 mm) bore diameter

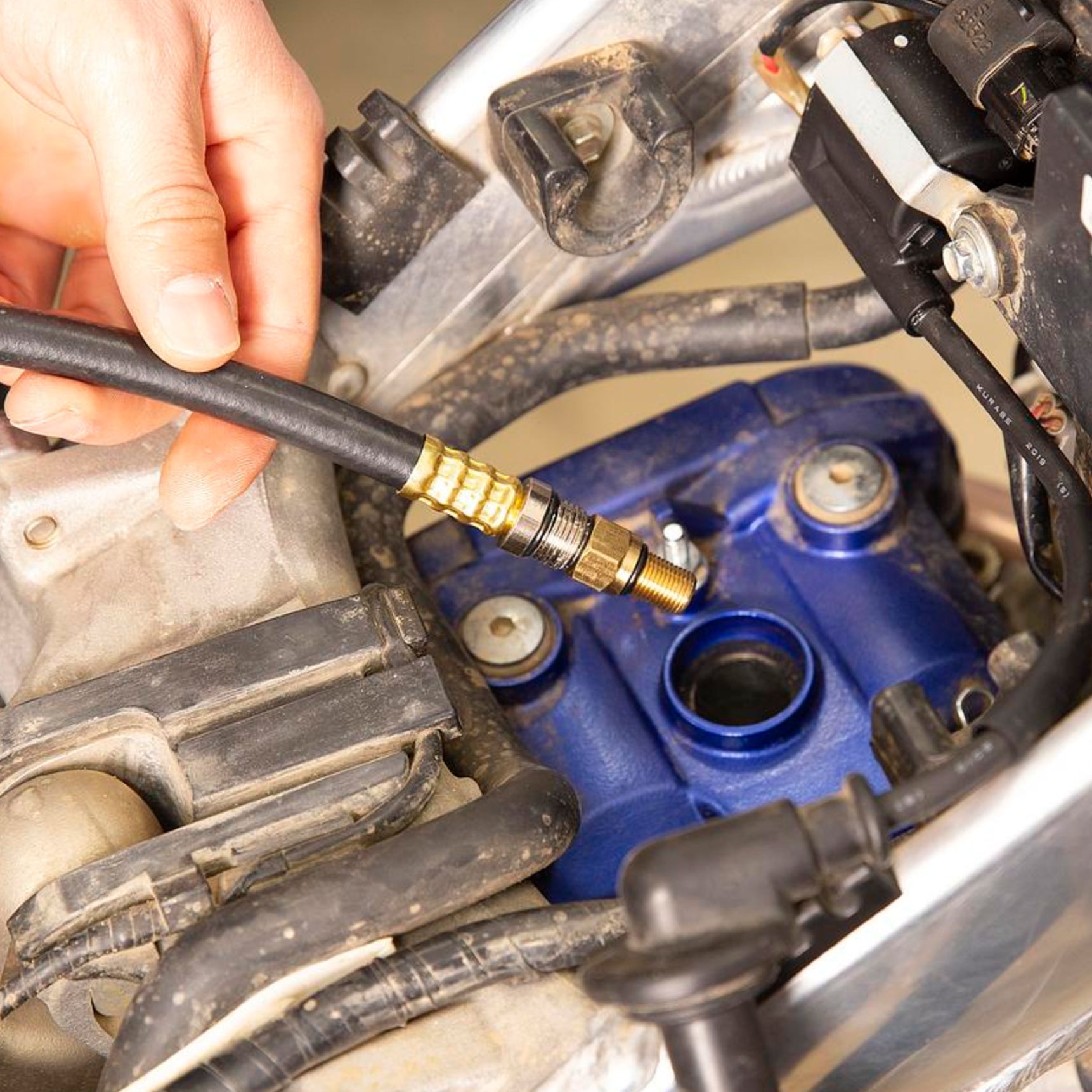

• Hose and adapter fits 10 mm, 12 mm, 14 mm spark plug threads
• Includes convenient molded tray and instructions
• Patent pending

Instructions for the Motion Pro Digital 4-Stroke Leak Down Tester
