MSC Moto APEX Anti Vibration Bar Mount System

For a detailed review of the MSC Moto Apex Bar Mount
System,see our article from Upshift Magazine,
Issue 80:  CLICK HERE

Custom designed for KTM, Husqvarna, GasGas, Beta, Sherco, and Husaberg motorcycles. The APEX bar mount system is perfect for reducing handlebar vibrations and damping out harsh impacts while riding.

The Apex features eight vacuum cast polyurethane design dampers positioned concentrically with the four handlebar clamp bolts, providing fully damped points on both the upper and lower contact points. Similar systems use only single-sided dampers, which do not provide full vibration damping.

The APEX Bar Mounts vastly reduce the amount of vibration received through the engine and chassis. Offering superior reliability over natural rubber while keeping effective damping characteristics and eliminating twisting in the event of an accident.

For Apex Bar Mount to Vector Steering Damper Adapter:  CLICK HERE

For Apex Bar Mount to Axis Steering Damper Adapter:  CLICK HERE

Features:

• Lightweight without sacrificing strength due to compact construction (503g Per Set)
• Mount Height - 40mm to centerline of handlebar
• Polyurethane resign dampers prevent twisting and vastly reduce vibration and arm pump
• All stainless steel fasteners
• APEX is 100% made in Australia by MSC Moto, including casting the polyurethane damper cones and all CNC machining work.

Fitment:

• 2000–2023  KTM EXC-F, XCF-W models with rigid bar clamp mounting

• 2000–2022  KTM XC and XC-W models with rigid bar clamp mounting

• 2000–2022  KTM SX models with rigid bar clamp mounting

• 2014–2023  Husqvarna FE & TE Models with rigid bar clamp mounting

• 2014–2015  Husqvarna MX models

• 2021–2023  GasGas MX, Enduro and Dualsport Models

• Sherco - Will fit most models except the "Factory Editions" w/ Xtrig top clamps

• Beta - All models using M10 mounting bolts

• 2023–2025 – CFMOTO Ibex 450 / 450MT - NOTE: The Ibex 450 will require a 1 1/8 inch handlebar to work with the Apex Mount.

IMPORTANT - THE APEX WILL NOT FIT KTM OR HUSQVARNA BIKES WITH ROUND RUBBER MOUNTS IN THE TRIPLE CLAMPS (SUCH AS SX AND TC MODELS)

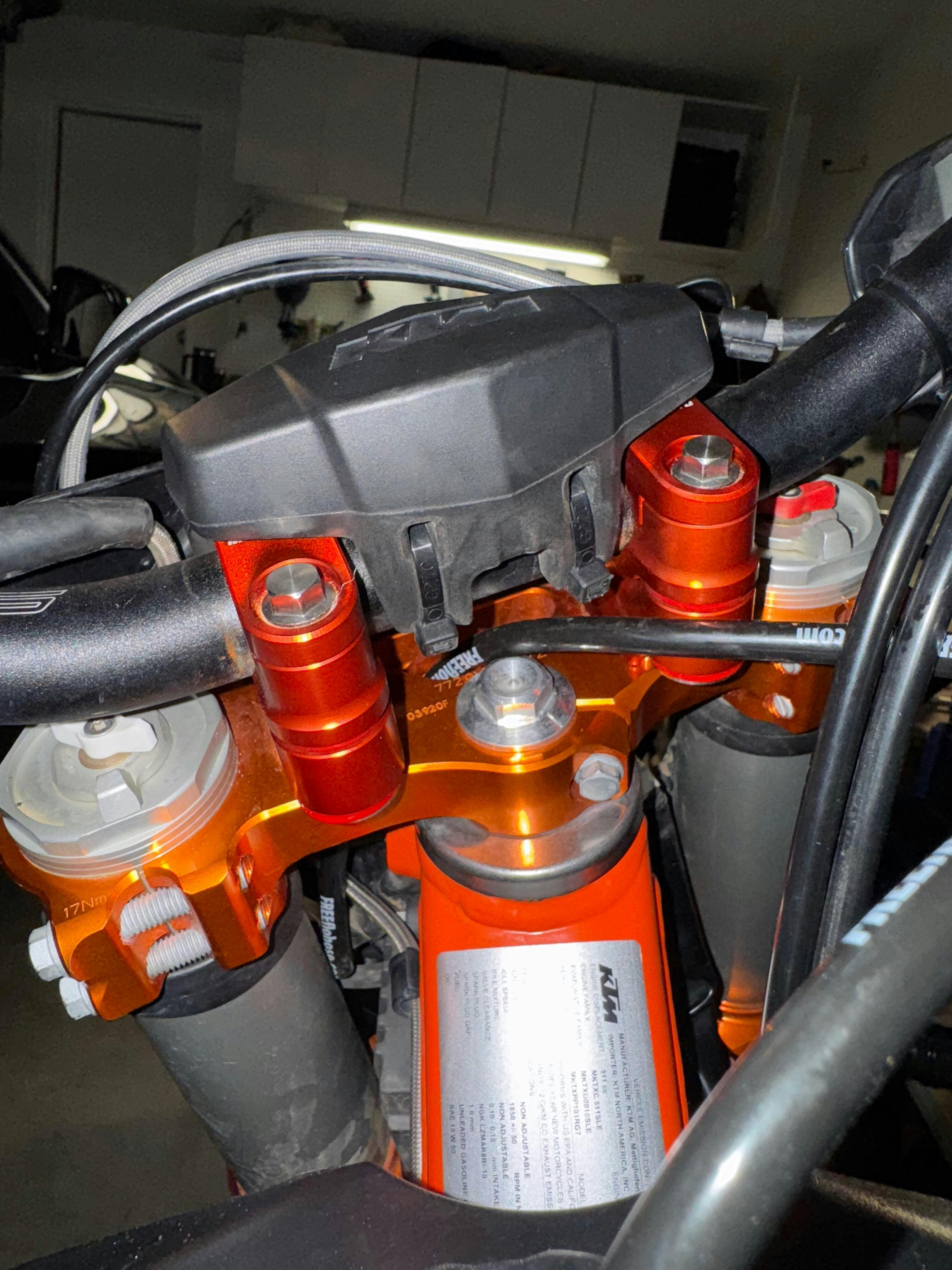

Fitment Diagram:

Below is an example of what clamps the APEX bar Mount system will fit with. The important dimension is the M10 bolt thread and the 20mm wide bar riser interface.

IMPORTANT - THE APEX WILL NOT FIT KTM OR HUSQVARNA BIKES WITH ROUND RUBBER MOUNTS IN THE TRIPLE CLAMPS (SUCH AS SX AND TC MODELS)
